Send Request

Send HTTP requests to external APIs and save the response data.

Overview

The Send Request field type allows you to make HTTP requests to external servers and process the response. You can save the response in different formats and extract specific data using JSONPath.

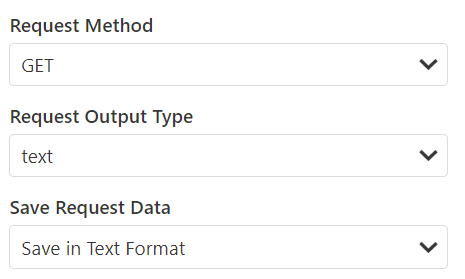

Configuration Options

Option	Type	Description	Required
Request URL	Text Input (via Default Value or Excel)	The URL to send the request to	Yes
Request Method	Dropdown	HTTP method for the request	Yes
Content Type	Dropdown	Content type for the request	Yes
Do you want to set Headers in the request?	Switch	Enable custom request headers	No
Headers	Textarea (JSON)	Custom headers in JSON format	No
Do you want to set body payload in the request?	Switch	Enable request body payload	No
Payload	Textarea (JSON)	Request body in JSON format	No
Do you want to send request to the same site origin?	Switch	Send request to same origin	No
Retry request on Error?	Switch	Enable retry mechanism on failure	No
Max Retry (Times)	Number	Maximum number of retry attempts	No
Interval (Seconds)	Number	Delay between retry attempts	No
Are you using custom javascript function for return field responses?	Switch	Enable custom JavaScript to modify response	No
Request Output Type	Dropdown	Format of the response data	Yes
JSON Path Parameters	Text Input	JSONPath expression to extract data	No
Save Request Data	Dropdown	Where to save the response data	Yes

Request URL

Set in: Default Value field option or Excel column

Description: The URL endpoint to send the HTTP request to.

Using Default Value

Set the URL directly in the Default Value field option.

Example:

https://api.example.com/users

Using Excel Column

Reference URL from your Excel sheet using the field column name.

Syntax: {$columnName$}

Example:

// Excel Column: "apiURL"
// Excel Data: "https://api.example.com/products/123"

// In Default Value field
{$apiURL$}

// Result: Sends request to https://api.example.com/products/123

Using Variables

You can use variables to create dynamic URLs.

Example:

// In Default Value field
https://api.example.com/users/{$userId$}/posts

// If userId = "456"
// Sends request to: https://api.example.com/users/456/posts

Request Method

Field: Dropdown

Description: Select the HTTP method for the request.

Available Methods:

Method	Description	Use Case
GET	Retrieve data from server	Fetch data, read resources
POST	Send data to server	Create new resources, submit forms
PUT	Update existing data	Update entire resource
PATCH	Partially update data	Update specific fields
DELETE	Remove data from server	Delete resources
OPTIONS	Get supported methods	Check API capabilities
HEAD	Get headers only	Check resource existence

Reference: HTTP Methods - MDN

Example:

// GET request
Request Method: GET
Request URL: https://api.example.com/users/123

// POST request
Request Method: POST
Request URL: https://api.example.com/users

Content Type

Field: Dropdown

Description: Specify the content type for the request. This determines how the request body is formatted and sent.

Available Options:

Content Type	Value	Description	Use Case
application/json	json	Send data as JSON	API requests, structured data
text/plain	text	Send data as plain text	Simple text data
multipart/form-data	form-data	Send data as form data with files	File uploads, complex forms
application/x-www-form-urlencoded	form	Send data as URL-encoded form	Standard HTML forms

Example:

// JSON Content Type
Content Type: application/json
Payload: {"name": "John", "email": "[email protected]"}

// Form Data Content Type
Content Type: multipart/form-data
Payload: name=John&email=[email protected]

// Plain Text Content Type
Content Type: text/plain
Payload: Hello World

Request Headers

Field: Switch + Textarea (JSON)

Description: Add custom HTTP headers to your request.

Enable: Turn on "Do you want to set Headers in the request?"

Format: JSON object with header key-value pairs

Example:

{
  "Authorization": "Bearer YOUR_TOKEN_HERE",
  "X-Custom-Header": "custom-value",
  "Accept": "application/json"
}

Common Headers:

Header	Description	Example
Authorization	Authentication token	Bearer abc123...
Content-Type	Request content type	application/json
Accept	Expected response type	application/json
X-API-Key	API key authentication	your-api-key
User-Agent	Client identification	MyApp/1.0

Use Cases:

• API authentication with tokens
• Custom API headers
• Content negotiation
• CORS headers
• Rate limiting headers

Request Payload

Field: Switch + Textarea (JSON)

Description: Send data in the request body (for POST, PUT, PATCH requests).

Enable: Turn on "Do you want to set body payload in the request?"

Format: JSON object or string depending on content type

Example 1: JSON Payload

{
  "username": "john_doe",
  "email": "[email protected]",
  "age": 30,
  "active": true
}

Example 2: Using Variables

{
  "name": "{$firstName$} {$lastName$}",
  "email": "{$email$}",
  "phone": "{$phone$}"
}

Example 3: Nested Objects

{
  "user": {
    "name": "{$name$}",
    "contact": {
      "email": "{$email$}",
      "phone": "{$phone$}"
    }
  },
  "metadata": {
    "source": "extension",
    "timestamp": "{$currentTime$}"
  }
}

Same Origin Request

Field: Switch

Description: Send the request to the same site origin as the current page.

Enable: Turn on "Do you want to send request to the same site origin?"

Use Cases:

• Internal API calls
• Same-domain requests
• Avoid CORS issues
• Session-based authentication

Retry Mechanism

Field: Switch + Number Inputs

Description: Automatically retry failed requests with configurable attempts and intervals.

Enable: Turn on "Retry request on Error?"

Configuration:

Option	Description	Default	Range
Max Retry (Times)	Maximum number of retry attempts	5	1-10
Interval (Seconds)	Delay between retry attempts	2	1-60

Example:

Retry request on Error: ✅ Enabled
Max Retry (Times): 5
Interval (Seconds): 2

Behavior:

1. Initial request fails
2. Wait 2 seconds
3. Retry request (attempt 1)
4. If fails, wait 2 seconds
5. Retry request (attempt 2)
6. Continue up to 5 retry attempts
7. If all retries fail, field returns error

Use Cases:

• Unstable network connections
• Rate-limited APIs
• Temporary server errors
• Timeout handling

Custom JavaScript Function

Field: Switch

Description: Use custom JavaScript to modify the response before it's saved.

Enable: Turn on "Are you using custom javascript function for return field responses?"

Setup:

1. Add a JavaScript Code field type above the Send Request field
2. Enable the custom function option in Send Request field
3. Use the field listener to process the response

JavaScript Code:

$fns.field.listener('EDF-FIELD-SEND-REQUEST', (output, callback) => {
  console.log("REQUEST:", output);

  // If custom function option is enabled, callback will work
  // You can set field error/success response like this

  // Success with modified data
  callback({ status: true, message: "DONE", data: output.response });

  // Or return error
  // callback({ status: false, message: "ERROR" });
});

$fns.return("1");

Output Object Structure:

{
  "type": "EDF-FIELD-SEND-REQUEST",
  "response": {
    // The actual response from the API
  }
}

Properties:

• type - Listener type identifier
• response - Field type response data

Example Use Cases:

1. Transform Response Data

$fns.field.listener('EDF-FIELD-SEND-REQUEST', (output, callback) => {
  // Extract specific field from response
  let userData = output.response.data.user;
  callback({ status: true, message: "User extracted", data: userData });
});
$fns.return("1");

2. Validate Response

$fns.field.listener('EDF-FIELD-SEND-REQUEST', (output, callback) => {
  if (output.response.status === "success") {
    callback({ status: true, message: "Valid response", data: output.response });
  } else {
    callback({ status: false, message: "Invalid response" });
  }
});
$fns.return("1");

3. Format Response

$fns.field.listener('EDF-FIELD-SEND-REQUEST', (output, callback) => {
  // Convert to uppercase
  let formatted = JSON.stringify(output.response).toUpperCase();
  callback({ status: true, message: "Formatted", data: formatted });
});
$fns.return("1");

4. Combine Multiple Values

$fns.field.listener('EDF-FIELD-SEND-REQUEST', (output, callback) => {
  let fullName = output.response.firstName + " " + output.response.lastName;
  callback({ status: true, message: "Combined", data: fullName });
});
$fns.return("1");

Request Output Type

Field: Dropdown

Description: Specify the format of the response data.

Available Options:

Output Type	Description	Use Case
json	Parse response as JSON	API responses, structured data
text	Treat response as plain text	Plain text responses
xml	Parse response as XML	XML API responses, SOAP services
html	Parse response as HTML	HTML pages, web scraping
blob	Treat response as binary data	File downloads, images, PDFs

Example:

// JSON response
Request Output Type: json
Response: {"name": "John", "age": 30}
Result: Parsed as JSON object

// Text response
Request Output Type: text
Response: <html><body>Hello</body></html>
Result: Treated as plain text string

// XML response
Request Output Type: xml
Response: <?xml version="1.0"?><user><name>John</name></user>
Result: Parsed as XML document

// HTML response
Request Output Type: html
Response: <div class="content">Hello World</div>
Result: Parsed as HTML document

// Blob response
Request Output Type: blob
Response: Binary file data
Result: Treated as binary blob

JSON Path Parameters

Field: Text Input

Description: Extract specific data from JSON responses using JSONPath expressions.

Library: JSONPath-Plus

When to use: When you need to extract specific values from a JSON response instead of saving the entire response.

Syntax: JSONPath expression

JSONPath Basics

Expression	Description	Example
$	Root object	$
$.property	Direct property access	$.name
$[0]	Array element by index	$[0]
$[*]	All array elements	$[*]
$.property[*]	All elements in nested array	$.users[*]
$..property	Recursive descent	$..email
$[?(@.property)]	Filter expression	$[?(@.age > 18)]

Examples

Example 1: Extract Single Value

// Response
{
  "user": {
    "name": "John Doe",
    "email": "[email protected]"
  }
}

// JSON Path
$.user.name

// Result
"John Doe"

Example 2: Extract Array Element

// Response
{
  "users": [
    {"name": "John", "age": 30},
    {"name": "Jane", "age": 25}
  ]
}

// JSON Path
$.users[0].name

// Result
"John"

Example 3: Extract All Elements

// Response
{
  "products": [
    {"id": 1, "name": "Product A"},
    {"id": 2, "name": "Product B"}
  ]
}

// JSON Path
$.products[*].name

// Result
["Product A", "Product B"]

Example 4: Filter Data

// Response
{
  "users": [
    {"name": "John", "age": 30},
    {"name": "Jane", "age": 17},
    {"name": "Bob", "age": 25}
  ]
}

// JSON Path
$.users[?(@.age >= 18)].name

// Result
["John", "Bob"]

Example 5: Recursive Search

// Response
{
  "company": {
    "departments": [
      {
        "name": "IT",
        "employees": [
          {"email": "[email protected]"},
          {"email": "[email protected]"}
        ]
      }
    ]
  }
}

// JSON Path
$..email

// Result
["[email protected]", "[email protected]"]

Reference: JSONPath-Plus Documentation

Save Request Data

Field: Dropdown

Description: Choose where to save the response data.

Available Options:

Option	Description	Use Case
Do nothing	Don't save the response	When you only need to trigger the request
Save in Field	Save response in the field column	Store response as text in Excel column
Save in Scraper Data	Save response in scraper data format	Structured data extraction, further processing

Example:

// Do nothing
Response: {"name": "John", "age": 30}
Result: Request is sent but response is not saved

// Save in Field
Response: {"name": "John", "age": 30}
Saved as: '{"name": "John", "age": 30}' in the field's Excel column

// Save in Scraper Data
Response: {"name": "John", "age": 30}
Saved as: Structured data accessible by other fields

Use Cases

Fetch User Data from API

Scenario: Get user information from an external API.

Configuration:

• Request URL: https://api.example.com/users/{$userId$}
• Request Method: GET
• Request Output Type: json
• JSON Path: $.user.name
• Save Request Data: Save in Scraper Data

Result: Extracts and saves user name from API response.

---

Submit Form Data to API

Scenario: Send form data to external API.

Configuration:

• Request URL: https://api.example.com/submit
• Request Method: POST
• Request Output Type: json
• JSON Path: $.response.status
• Save Request Data: Save in Text Format

Result: Submits data and saves response status.

---

Extract Product List

Scenario: Get all product names from API.

Configuration:

• Request URL: https://api.example.com/products
• Request Method: GET
• Request Output Type: json
• JSON Path: $.products[*].name
• Save Request Data: Save in Scraper Data

Result: Extracts all product names as array.

---

Verify API Response

Scenario: Check if API returns success status.

Configuration:

• Request URL: https://api.example.com/status
• Request Method: GET
• Request Output Type: json
• JSON Path: $.status
• Save Request Data: Save in Text Format

Result: Saves status value for verification.

Best Practices

✅ Do's

• Use HTTPS - Always use secure HTTPS endpoints
• Test JSONPath - Verify JSONPath expressions before deployment
• Handle errors - Plan for failed requests
• Use appropriate methods - GET for reading, POST for creating
• Validate responses - Check response format and structure
• Use variables - Make URLs dynamic with Excel data

❌ Don'ts

• Don't expose sensitive data - Keep API keys secure
• Don't use wrong methods - Don't use POST for reading data
• Don't ignore errors - Handle failed requests properly
• Don't use complex JSONPath unnecessarily - Keep expressions simple
• Don't forget output type - Match output type with actual response
• Don't hardcode URLs - Use variables for flexibility

Troubleshooting

Request Failing

Solutions:

• Verify URL is correct and accessible
• Check if API endpoint is available
• Ensure request method is appropriate
• Verify network connectivity
• Check browser console for errors
• Test URL in browser or Postman first

---

JSONPath Not Working

Solutions:

• Verify JSONPath syntax is correct
• Check if response is valid JSON
• Ensure output type is set to "json"
• Test JSONPath expression online
• Check for typos in property names
• Verify response structure matches expression

---

Response Not Saving

Solutions:

• Verify "Save Request Data" option is selected
• Check if response is in expected format
• Ensure output type matches response
• Verify JSONPath extracts valid data
• Check browser console for errors

---

Wrong Data Extracted

Solutions:

• Verify JSONPath expression is correct
• Check response structure
• Test JSONPath with sample response
• Ensure array indices are correct
• Verify filter expressions work as expected

Examples

Example 1: Simple GET Request

// Configuration
Request URL: https://api.example.com/users/123
Request Method: GET
Request Output Type: json
JSON Path: $.name
Save Request Data: Save in Text Format

// Response
{
  "id": 123,
  "name": "John Doe",
  "email": "[email protected]"
}

// Result: Saves "John Doe"

Example 2: POST Request with Dynamic URL

// Configuration
Request URL: https://api.example.com/users/{$userId$}/posts
Request Method: POST
Request Output Type: json
JSON Path: $.response.id
Save Request Data: Save in Scraper Data

// Excel Data
userId: "456"

// Result: Sends POST to https://api.example.com/users/456/posts

Example 3: Extract Array Data

// Configuration
Request URL: https://api.example.com/products
Request Method: GET
Request Output Type: json
JSON Path: $.products[*].name
Save Request Data: Save in Scraper Data

// Response
{
  "products": [
    {"id": 1, "name": "Laptop"},
    {"id": 2, "name": "Mouse"}
  ]
}

// Result: Saves ["Laptop", "Mouse"]

Example 4: Filter and Extract

// Configuration
Request URL: https://api.example.com/orders
Request Method: GET
Request Output Type: json
JSON Path: $.orders[?(@.status == 'completed')].id
Save Request Data: Save in Scraper Data

// Response
{
  "orders": [
    {"id": 1, "status": "completed"},
    {"id": 2, "status": "pending"},
    {"id": 3, "status": "completed"}
  ]
}

// Result: Saves [1, 3]

Example 5: Advanced Request with All Features

This example demonstrates using headers, payload, retry mechanism, and custom JavaScript function together.

Step 1: Add JavaScript Code Field (Above Send Request)

$fns.field.listener('EDF-FIELD-SEND-REQUEST', (output, callback) => {
  console.log("API Response:", output);

  // Validate response
  if (output.response && output.response.success) {
    // Extract user data
    let userData = {
      id: output.response.data.id,
      name: output.response.data.name,
      email: output.response.data.email
    };

    callback({
      status: true,
      message: "User data extracted successfully",
      data: JSON.stringify(userData)
    });
  } else {
    callback({
      status: false,
      message: "API returned error: " + (output.response.error || "Unknown error")
    });
  }
});

$fns.return("1");

Step 2: Configure Send Request Field

// Configuration
Request URL: https://api.example.com/users
Request Method: POST
Content Type: application/json

// Headers
Do you want to set Headers in the request?: ✅ Enabled
Headers:
{
  "Authorization": "Bearer {$apiToken$}",
  "X-API-Key": "{$apiKey$}",
  "Content-Type": "application/json"
}

// Payload
Do you want to set body payload in the request?: ✅ Enabled
Payload:
{
  "username": "{$username$}",
  "email": "{$email$}",
  "firstName": "{$firstName$}",
  "lastName": "{$lastName$}",
  "metadata": {
    "source": "extension",
    "timestamp": "{$currentTimestamp$}"
  }
}

// Retry Settings
Retry request on Error?: ✅ Enabled
Max Retry (Times): 3
Interval (Seconds): 5

// Custom Function
Are you using custom javascript function for return field responses?: ✅ Enabled

// Output Settings
Request Output Type: json
JSON Path: $
Save Request Data: Save in Field

API Response:

{
  "success": true,
  "data": {
    "id": 12345,
    "name": "John Doe",
    "email": "[email protected]",
    "createdAt": "2024-01-15T10:30:00Z"
  }
}

Result:

The custom JavaScript function extracts and formats the user data, saving:

{"id":12345,"name":"John Doe","email":"[email protected]"}

Behavior:

1. Sends POST request with custom headers and payload
2. If request fails, retries up to 3 times with 5-second intervals
3. On success, custom JavaScript validates and extracts specific fields
4. Saves formatted data to Excel column

Related Documentation

• Field Settings
• Default Value
• Scraper Data
• HTTP Methods - MDN
• JSONPath-Plus

Notes

• Requests are sent from the browser context
• CORS policies may restrict some requests
• Response size limits may apply
• JSONPath only works with JSON output type
• Empty JSONPath returns entire response
• Text output type returns raw response as string
